TP Mikro Modul 1

[KEMBALI KE MENU SEBELUMNYA]

DAFTAR ISI

1. Kondisi

2. Gambar Rangkaian Simulasi

3. Flowchart

4. Listing Program
5. Video
6. Link Download

1. Kondisi [Kembali]
Tampilkan angka 0,9,2,6 secara bergantian..

2. Gambar Rangkaian Simulasi [kembali]

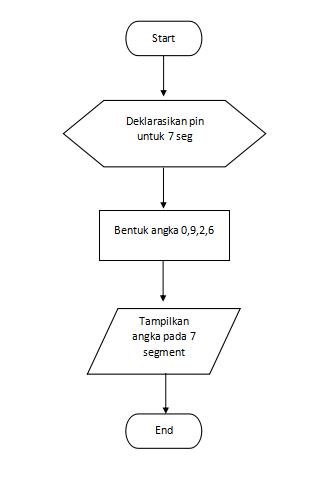

3. Flowchart  [kembali]

4. Listing Program  [kembali]
byte pin[]={6,7,8,9,10,11,12};

void setup() {
  // put your setup code here, to run once:
for(int i=0;i<10;i++)
{
  pinMode(pin[i],OUTPUT);
}
}

void loop() {
  // put your main code here, to run repeatedly:
  digitalWrite(6,LOW);
  digitalWrite(7,HIGH);
  digitalWrite(8,HIGH);
  digitalWrite(9,HIGH);
  digitalWrite(10,HIGH);
  digitalWrite(11,HIGH);
  digitalWrite(12,HIGH);
  delay(1000);

  digitalWrite(6,HIGH);
  digitalWrite(7,HIGH);
  digitalWrite(8,LOW);
  digitalWrite(9,HIGH);
  digitalWrite(10,HIGH);
  digitalWrite(11,HIGH);
  digitalWrite(12,HIGH);
  delay(1000);

  digitalWrite(6,HIGH);
  digitalWrite(7,LOW);
  digitalWrite(8,HIGH);
  digitalWrite(9,HIGH);
  digitalWrite(10,LOW);
  digitalWrite(11,HIGH);
  digitalWrite(12,HIGH);
  delay(1000);
  digitalWrite(6,HIGH);
  digitalWrite(7,HIGH);
  digitalWrite(8,HIGH);
  digitalWrite(9,HIGH);
  digitalWrite(10,HIGH);
  digitalWrite(11,LOW);
  digitalWrite(12,HIGH);
  delay(1000);
}

5. Video  [kembali]

6. Link Download  [kembali]
Rangkaian Simulasi
Video Simulasi
Program Arduino
